Usage Guide

Team members browse the MCP Hub to discover available services, view details and capabilities, and get configuration for integration into their AI Agent.

Usage Steps

Enter MCP Hub

After logging in, go to "App Center". The top navigation bar shows the MCP Hub entry and the number of available MCP Servers.
Click the "MCP Hub" tab to enter the MCP service market page. All MCP Servers you have access to are displayed as cards.
Each card includes: service name, code, connection status, type tag, and a brief description for easy browsing.

Search & Filter

Enter service name, code, or description keywords in the search box to filter matching MCP Servers in real time.
Use the type tag filter to quickly filter by category. Click a tag to view only services of that type.

View Service Details

Click on an MCP Server card to enter the detail page and view full service information.
The "Overview" tab displays basic service info (name, code, protocol, endpoint, type) and connection status.
The "Capabilities" tab lists the capabilities the service supports: Tools, Resources, and Prompts.
The statistics area shows: total calls, success rate, average response time, and online rate.

Copy Access Configuration

Find the "Usage Config" section on the detail page. The system automatically generates the mcpServers configuration snippet for your Agent.
Select the authentication mode (OAuth or API Key) and copy the corresponding JSON configuration.
Paste the configuration into your AI Agent's configuration file and you're ready to go.

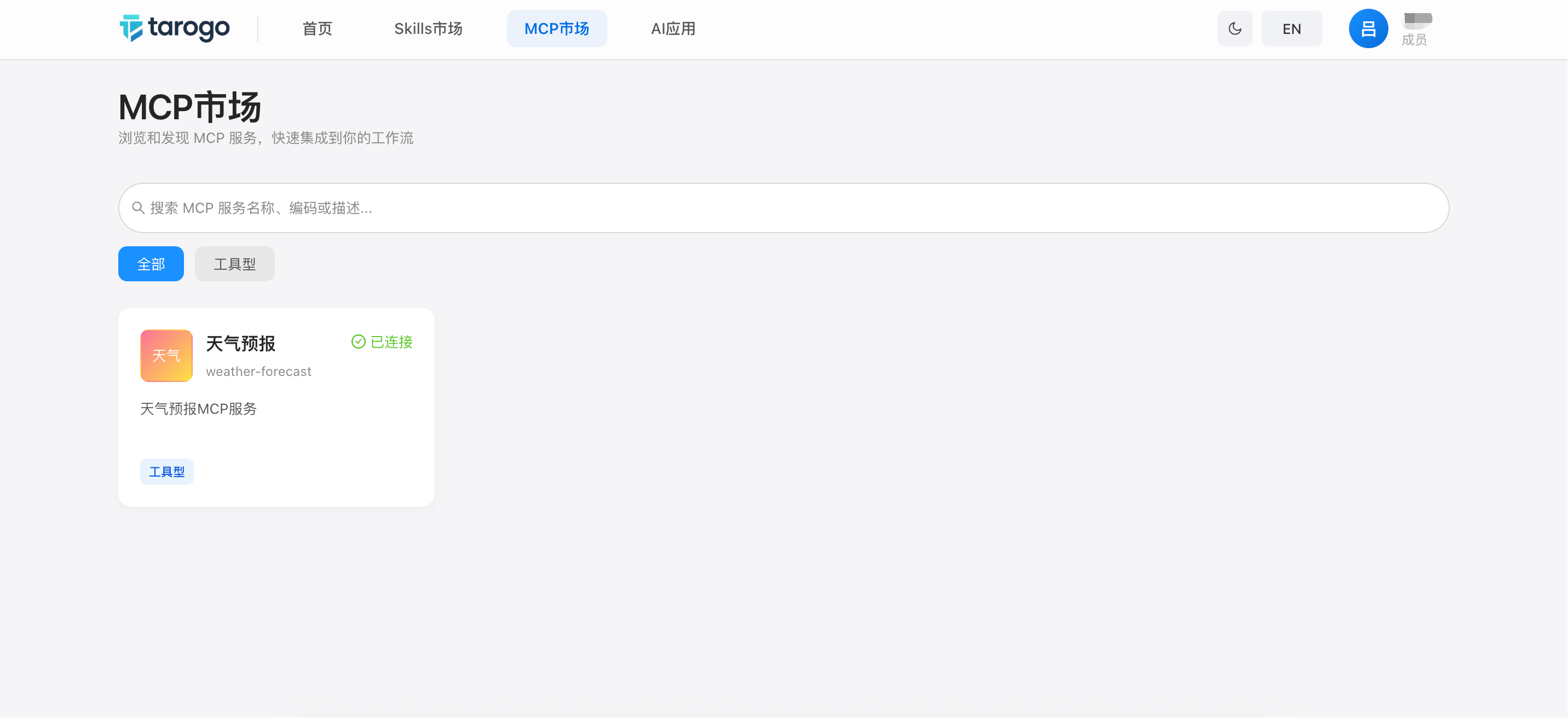

Figure 1: MCP Hub — Browsing Available MCP Services

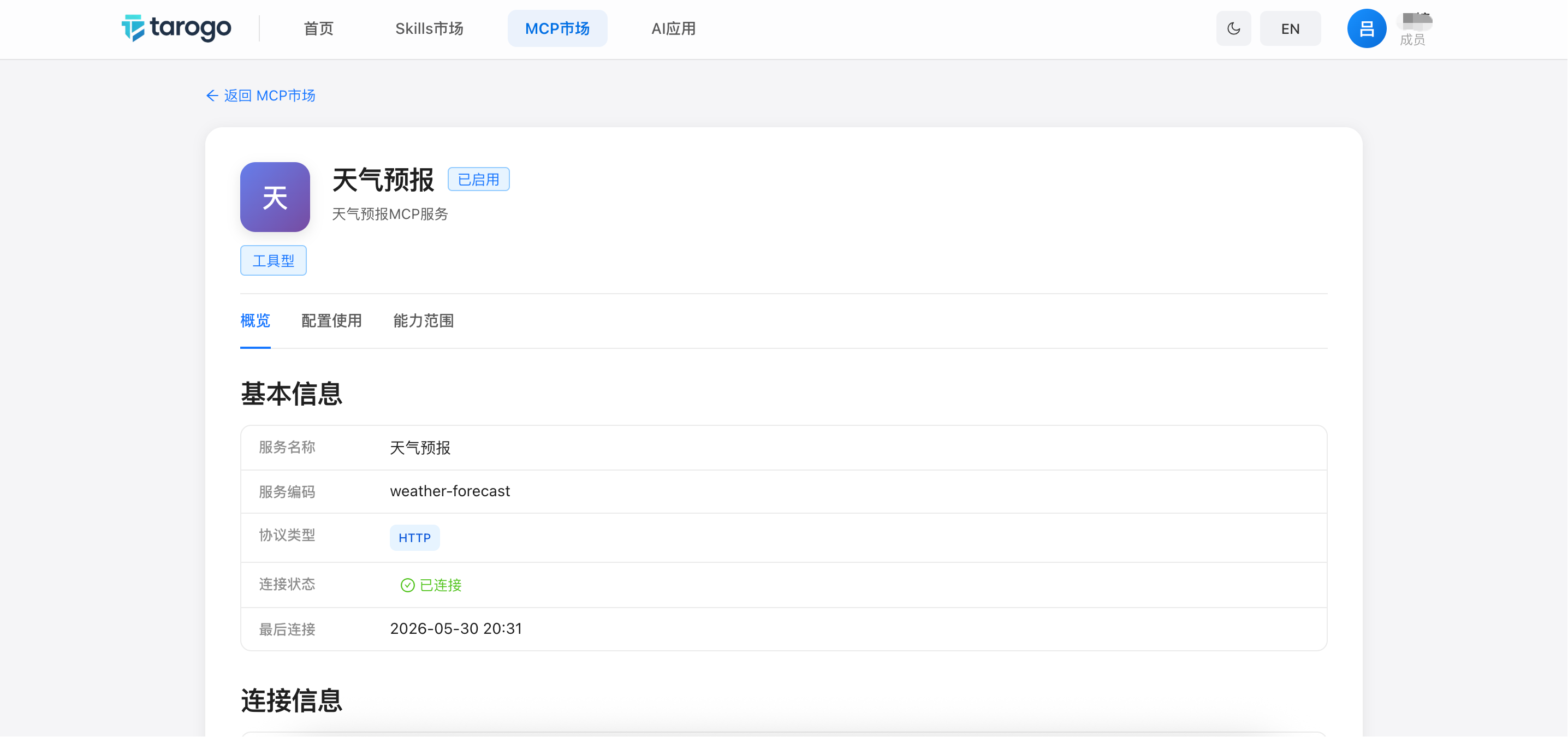

Figure 2: MCP Server Detail Page — Overview & Capabilities

Access Configuration Example

Copy the following JSON configuration into your AI Agent's mcpServers configuration and replace {YOUR_API_KEY} with your own API Key.

{
  "mcpServers": {
    "ServerName": {
      "url": "https://mcp.gateway.ai/{serverCode}/mcp",
      "headers": {
        "x-api-key": "{YOUR_API_KEY}"
      }
    }
  }
}

Authentication Methods

API Key Mode

After the admin creates a personal API Key, include x-api-key in the request header. The gateway identifies the caller by the Key and performs permission verification.

OAuth 2.0 Mode

After the admin completes OAuth authorization, the system generates authorization credentials. The gateway automatically handles token acquisition and refresh during Agent calls — no manual authentication flow required.

Interactive Features

Search

Search by service name, code, or description keywords to quickly locate the MCP Server you need.

Capability Preview

View the Tools, Resources, and Prompts lists on the detail page to understand the specific capabilities the service provides.

One-Click Copy

Copy the mcpServers configuration with one click on the detail page and paste it into your Agent to start using it.

Important Notes

You can only see MCP Servers you have permission to access. If no services are found, contact your admin to configure permissions.
API Keys must be created by an admin in the management console. Personal Keys can be reset at any time.
After OAuth authorization is complete, the authorized status is visible upon returning to the system — no repeated authorization needed.
MCP Server connection status can be viewed on the detail page. Contact your admin if you encounter connection issues.
